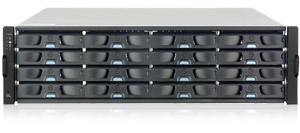

EonNAS 3016 (Legacy product)
EonNAS 3016 Gen 2, the high availability active-active redundant controllers ensure non-stop performance through powerful unified storage. With its high speed architecture and working on the file and block levels, the EonNAS 3016 features the ZFS file system and Global Namespace to provide enhanced data integrity and simplified management.
This model is discontinued; the recommended offering is EonStor GS unified storage for enterprises.
| Features | Benefits |
|---|---|
Dual controllers and redundant power supplies |
Fast failover performance and high data availability |
Hybrid host interface with optional onboard iSCSI |
Combine diverse connectivity environments on one system for greater utility |
Multiple host interface options |
Choose 16Gb/s Fibre Channel, 1Gb/s iSCSI or 10Gb/s iSCSI based on your needs and budget |
Advanced ZFS support |
Protection from silent data corruption and provide end-to-end data integrity |
Secure remote replication |
The backup to offsite locations provides very reliable and safe disaster recovery |
Thin provisioning |
Improve storage utilization up to 80% - get more for your investment |
Unlimited snapshot |
Powered by the revolutionary ZFS, EonNAS supports an unlimited number of snapshots that enable users to quickly restore data only in seconds |
Expansion up to 256 HDDs |
"Pay-as-you-grow" scalability; no waste on what you don't need, and no worries about what you will need |
Build in pool mirror |
Perform real-time data replication between two different EonNAS, seamlessly take over services at minimized downtime. |
Modular cable-less design |
Installation made easy and storage reliability is enhanced. It makes deployment, maintenance, and upgrades as user-friendly as possible too. |
Unified storage with comprehensive network protocol support |
Files can be easily shared among local and remote workstations featuring Windows, Mac or Linux platforms. Make storage consolidation and cross-platform file sharing easily. |
Data compression technology |
Supported on both shared folders and iSCSI volumes, data compression on EonNAS is achieved with the LZJB algorithm, offering lossless and low-overhead compression. |
Global Namespace |
Dynamic and variable management is made accessible with Global Namespace architecture to create more efficient file sharing with greater ease of use. |
RAID Protection & Disk Roaming |
The RAID protection ensures data stays intact during simultaneous failures of up to two disk drives. While Disk-Roaming enables disk drives be moved within an array, the drives could be intact transferred to another EonNAS system and be automatically recognized with no drives re-building after the replacement of systems. |
Optimal iSCSI and Virtualization Ready |
The built-in iSCSI support on EonNAS enables you to deploy IP SAN and to serve applications, such as mail servers, databases and virtualization. EonNAS provides a seamless storage solution for virtualization servers such as VMware, Citrix and Hyper-V. |
Host Ports
- Onboard host ports:
- 1GbE (RJ-45) x 8
- Host board options:
- 16Gb/s FC x 2
- 1GbE (RJ-45) x 4
- 10GbE (SFP+/RJ-45) x 2
Controller
Dual redundant controllers (active/active)
Cache Memory
Default 16GB, up to 64GB
Drive Connectivity
- 6Gb/s SAS connectivity
- S.M.A.R.T. support
- Automatic bad-sector reassignment
- Dedicated bandwidth to each connected drive
Supported Drives
- 2.5" SAS SSD
- 2.5" 6Gb/s SAS 10,000 RPM HDD
- 3.5" 6Gb/s NL-SAS 7,200 RPM HDD
Max. Drive Number
256 (via expansion enclosures)
Rack Support
3U, 19-inch rackmount
RAID Functionality
- Global, dedicated or enclosure hot-spare
- RAID levels supported : RAID 0, 1, (1+0), 3, 5, 6, 10, 30, 50, 60
- Online expansion by:
- Adding new drives
- Copying and replacing drives with drives of larger capacity
- Configurable stripe size and write policy per system
- Intelligent drive handling
- In degraded mode: skips irreparable blocks to continue rebuild
- In normal operation: data-block verification and repair
Data Services
- OpenSolaris ZFS end-to-end data integrity
- Local Replication
- Unlimited Snapshot
- Pool mirror - Remote Replication
- Synchronous or asynchronous - ICAP-based anti-virus support
- WORM(Write Once, Read Many)
- Data compression
Green Design
- 80 PLUS-certified power supplies delivering more than 80% energy efficiency
- Intelligent multi-level drive spin-down
Availability and Reliability
Redundant, hot-swappable hardware modules
Notification
Various event notification methods including email and SNMP trap.
System Management
- Start-up wizard
- Web-based GUI
- Real-time system monitoring
- Dashboard monitoring
- Configurable alerts
- Network time protocol
- SNMP
- UPS management
- Disk Roaming
- HDD S.M.A.R.T.
Supported OS
- Windows XP
- Vista (32/64-bit)
- Windows 7 (32/64-bit)
- Windows server 2003
- Windows Server 2008, 2008 R2 (including Hyper-V)
- Windows Server 2012
- macOS X
- Citrix XenServer
- VMware vSphere
Service and Support
Standard service
- 3-year limited hardware/software warranty and 8x5 phone, web, and email support
Upgrade/Extension service (optional and service may vary by region)
- replacement part dispatch on the next business day (up to 5 years)
Power Supply Unit
- Power supplies: redundant and hot-swappable 530W x 2
- AC voltage: 100VAC @10A to 240VAC @5A
- Frequency: 50-60 Hz
Environmental
- Temperature:
- Operating: 0°C to 35°C
- Non-operating: -40°C to 60°C
- Altitude:
- Operating: sea level to 3,660 m (12,000 ft)
- Non-operating: sea level to 12,192 m (40,000 ft)
- Relative humidity: 5% to 95% non-condensing, operating and non-operating
Dimensions (W x H x D)
447 x 130 x 500 mm (without chassis ears and protrusions)
Weight
35.00kg/ 77.16lbs (without HDDs)
Package Dimensions (W x H x D)
910 x 600 x 440 mm
Supported Protocols
- File level: CIFS/SMB, NFS, AFP, FTP/FXP, WebDAV
- Block level: FC, FCoE, iSCSI, InfiniBand, SAS
- Object level: RESTful API
Backup Server
- Apple Time Machine support
- Windows Backup and Recovery support
- Remote replication
- Rsync with 128-bit SSH encryption - 3rd party backup software support
- Acronis Backup & Recovery™/ True Image Home
- Symantec Backup Exec 2012
- EMC Retrospect Backup & Recovery
- Commvault Simpana
- Veeam Backup & Replication
- CA ARCserve® Backup
** Note: for feature support details, please also check the relevant vendor compatibility list
Network Configuration
- IPv6 support
- Fixed or dynamic IP address
- Dual Gigabit Ethernet with Jumbo Frame
- Port trunking, NIC teaming, Link aggregation (IEEE 802.3ad)
- DHCP client
- MPIO, MC/S support
Power Management
- Network UPS with SNMP management
- Schedule Power on/off
Access Right Management
- User account management
- Group management
- Folder management
- Folder and subfolder access control
- Folder quota
- Comprehensive access control action items
- All Controls, Read, Read and Run, Write, Modify, List
- Support Windows Active Directory Authentication
- Domain Users Login via CIFS/SMB, AFP, FTP, and file explorer
- LDAP on Linux
