Check the Slide Rail Kit Contents
Check your rackmount slide kit for the following contents.
2 x Rack slide rails (left and right)
Cable management arm
6 x M4 6mm screws
2 x M5 cage nuts
8 x Ø5.1mm washers
8 x M5 10mm screwsAssemble the Rackmount Slide Kit

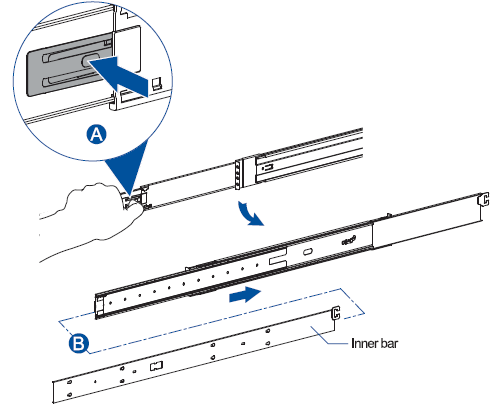

- Press the release button
then remove the inner bar
from the slide rail.

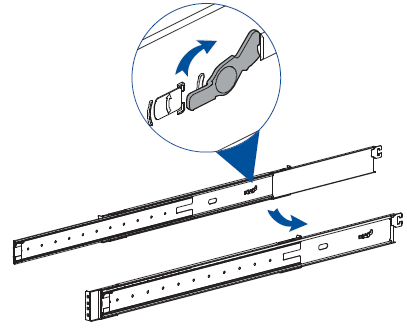

- Move the lever to the right side (follow the direction of the engraved arrow), then compress the remaining bars of the slide rail.
- Determine the location where you want to install the slide rails to the rack posts.

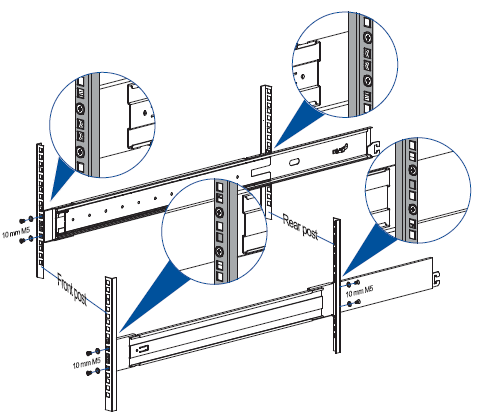

- Attach the slide rails to the rack posts using eight M5 10mm screws and washers, four for front posts and the other four for rear posts.
- For the inner bars that you removed from the slide rails, install them to the sides of the enclosure

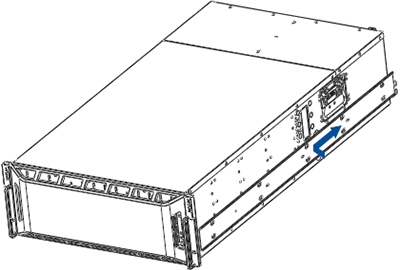

- Align and fit the inner bar’s sockets to the four hinges of the enclosure, then slide it to the back of the enclosure. Do the same for the other side.

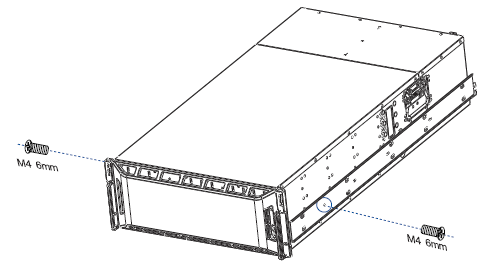

- Use two M4 6mm screws to secure the inner bars to the sides of the enclosure.
- Align and fit the inner bar’s sockets to the four hinges of the enclosure, then slide it to the back of the enclosure. Do the same for the other side.

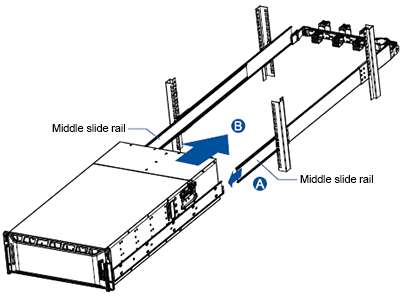

- Extend the middle slide rails (A), then align them to the installed inner bars and insert the whole enclosure on to the slide rails (B). Do NOT push the enclosure into the rack completely yet.
Important!
Due to the weight of the enclosure, we recommend you to ask assistance from at least 2 persons to install the enclosure to the rack.
- Continue with Install the Adjuster Pillars in the next chapter.
