Check the Slide Rail Kit Contents
Check your rackmount slide kit for the following contents.
2 x Rack slide rails (left and right)
6 x M4 6mm screws
2 x M5 cage nuts
8 x Ø5.1mm washers
8 x M5 10mm screwsAssemble the Slide Rail Kit
- Press the release tab (A), and remove the inner rail from the slide rail kit (B).
- Move the lever in the direction indicated by the engraved arrow (A), and slide the middle rail back into the outer rail (B).
- Determine the location where you want to install the slide rails to the rack posts.
- Attach the slide rails to the rack posts using eight M5 10mm screws and washers, four for front posts and the other four for rear posts.

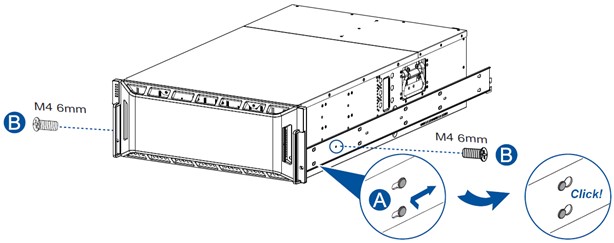

- Attach the inner rails to the sides of the enclosure. Make sure that the pins on the enclosure click into the holes in the inner rails (A). Then secure the inner rails to the enclosure with the M4 6mm screws provided (B).
