Check the Contents

Check the following contents in the cable management arm kit and the accessory box that came with the package of your storage enclosure.

Cable Management Arm Kit Contents

Accessory Box Contents

Install the Cable Management Arm and Accessories

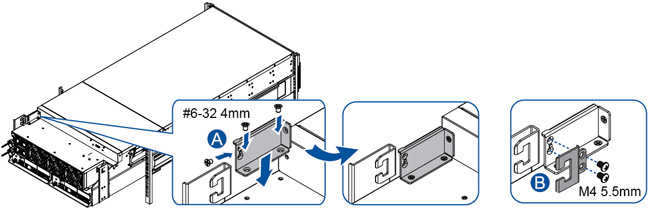

1. Install the side bracket to the rear of the enclosure with three #6-32 4mm screws (A), and then install the inner latch to the bracket with two M4 5.5mm screws (B).



2. Determine the direction to install the cable management arm.



   Rotate the latch shields if necessary.

   • For latch shields (A) and (C): Rotate the latch shield 180° directly.
   • For latch shield (E): Press the latch button (1), and rotate the latch shield 180° (2).



3. If you need to adjust a cable clamp’s position, follow the steps below.

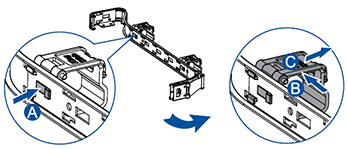

   a. Press the flat part of the bigger latch to release the cable clamp (A), push the cable clamp in the direction as illustrated below (B), and remove it from the cable management arm (C).



   b. Move the cable clamp to the desired position. Insert the three latches into the respective holes in the arm (A), and push the cable clamp towards the bigger latch until all three latches snap into place (B).

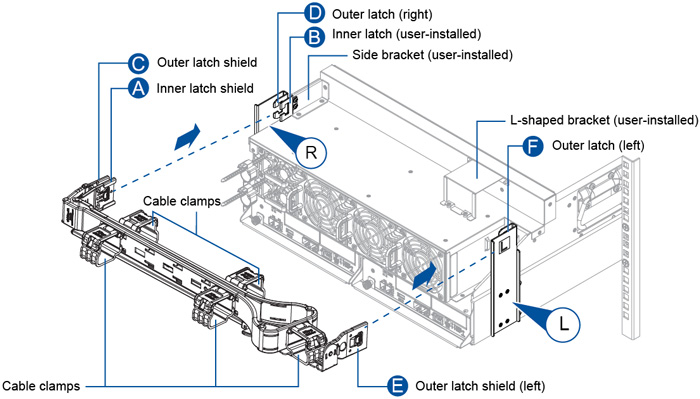

4. Connect the latch shields of the cable management arm to the inner and outer latches.

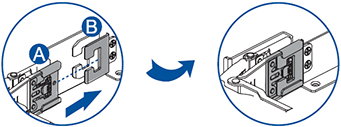

   a. Connect the inner latch shield (A) of the cable management arm to the inner latch (B) on the storage enclosure.

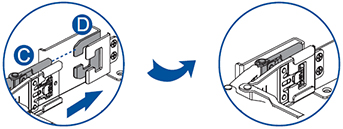

   b. Connect the outer latch shield (C) of the cable management arm to the outer latch (D) on the right rail.

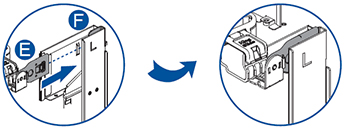

   c. Connect the outer latch shield (E) of the cable management arm to the outer latch (F) on the left rail.

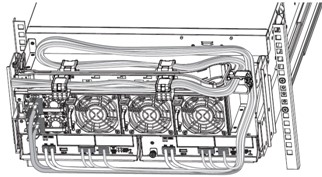

5. Route the cables through the cable clamps to keep them in place.

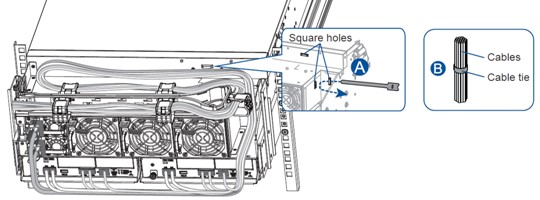

6. Secure the cables with a cable tie. Put a cable tie through one of the square holes in the rear of the enclosure (A), and wrap the cables with the cable tie (B). Do the same with another cable tie and square hole if necessary.

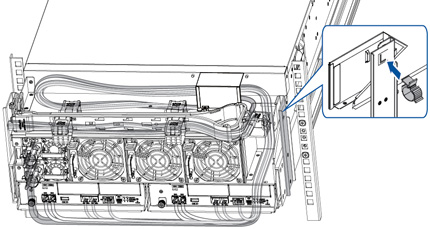

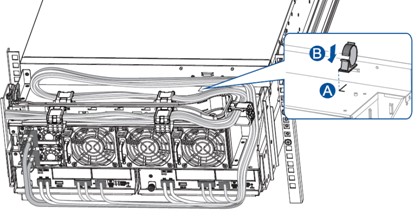

7. Secure the cables with the wire mount if you have a large number of cables. Align the wire mount with the engraved mark on the enclosure (A), and attach it to the enclosure using the double-sided tape on the wire mount’s bottom (B). Route the cables through the wire mount to keep them in place.

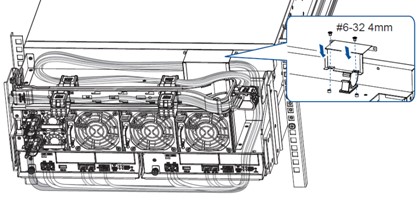

8. Install the L-shaped bracket to the enclosure with two #6-32 4mm screws. Route the cables through the bracket. The bracket can secure the cables in place when you slide the enclosure out of the rack for maintenance.



   Note:

   The L-shaped bracket secures the cables in place when you slide the enclosure out of the rack for meaintenance.

9. Secure the cables with a small wire mount. Attach one small wire mount to the rear left post using the double-sided tape on the wire mount’s bottom. Route the cables through the mount to provide proper support.



   Note:

   If needed, attach additional small wire mounts to the rear left post.
