Important!

• Refer to the Compatibility Guide (QVL) for supported drives.
• Ensure to install the enclosure to the rack first before installing drives to the enclosure’s drive bays.
• Ensure that your system has all the drive bays occupied with drive trays even if there are no drives installed. Without the drive trays, the ventilation is compromised and may cause overheating.

1. Press the release button to open the spring handle.

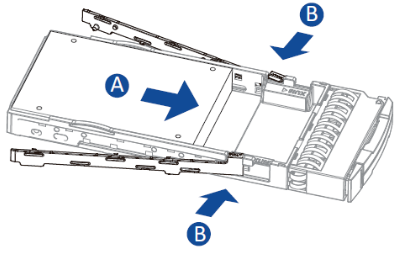

2. Install a drive into the drive tray. Place the drive into the drive tray (A) and secure the clips to both sides of the tray (B).



3. With the spring handle open, insert the assembled drive and drive tray into the enclosure.



4. When the tray is fully inserted into the bay, close the spring handle.



Note:

The images are for illustration purposes only. System design varies by model.
