Set JBOD Expansion IDs
- Locate the rotary switch on the JBOD’s front panel.
- Use a small flat blade screw driver to set a unique ID on the JBOD expansion system.
Important!
- The storage system is assigned with ID 0 by default.
- When setting an ID on the JBOD system, you must start from 1.
Connect to JBOD Expansions

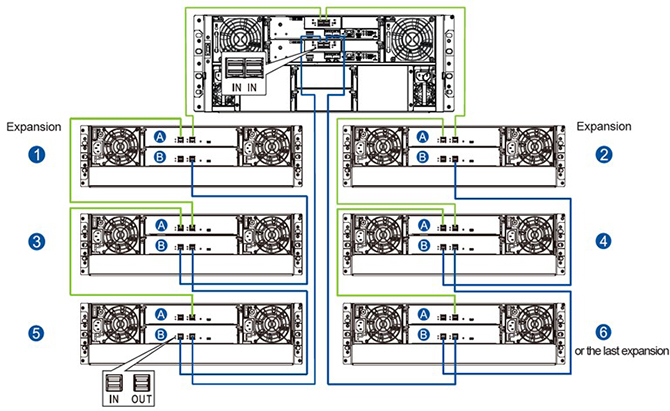

The example below illustrates IN to OUT connections between the storage system and JBOD expansions, using additionally installed SAS expansion boards.
Important!
- Refer to the Host Board and Memory Guide to identify the correct host board slot for installing a SAS expansion board.
- The example below is for reference only. For more information, refer to theExpansion Enclosure Guide for U.2 Family.
