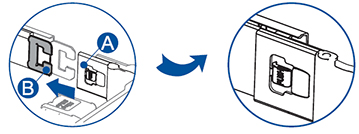

- Press the latch button at each end of the cable management arm (A), and then rotate the latch shield 180° (B).
- If you need to adjust a cable clamp’s position, follow the steps below.

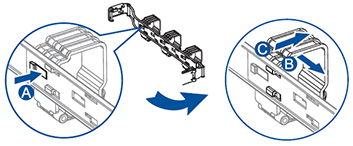

- a. Press the flat part of the bigger latch to release the cable clamp (A), push the cable clamp in the direction as illustrated below (B), and remove it from the cable management arm (C).
- b. Move the cable clamp to the desired position. Insert the three latches into the respective holes in the arm (A), and push the cable clamp towards the bigger latch until all three latches snap into place (B).
- a. Press the flat part of the bigger latch to release the cable clamp (A), push the cable clamp in the direction as illustrated below (B), and remove it from the cable management arm (C).

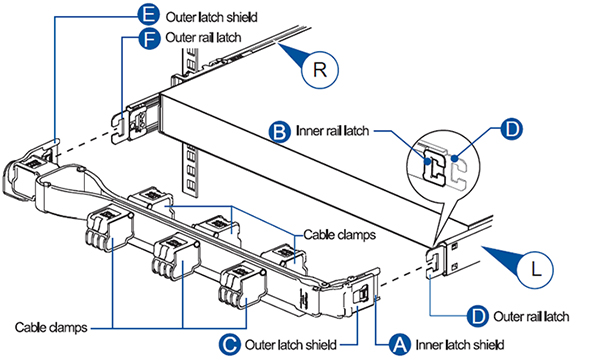

- Connect the latch shields of the cable management arm to the latches of the slide rails.
- a. Connect the inner latch shield (A) of the cable management arm to the inner latch (B).

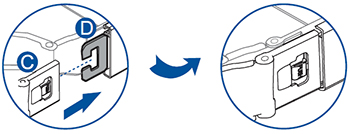

- b. Connect the outer latch shield (C) of the cable management arm to the outer latch (D).

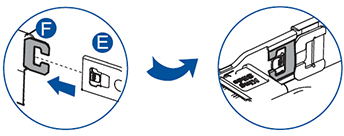

- c. Connect the outer latch shield (E) of the cable management arm to the outer latch (F).
- a. Connect the inner latch shield (A) of the cable management arm to the inner latch (B).
{{vmH.selected.familySearch.replace("EonStor ", "")}} Installation Guide
Install the Cable Management Arm
EonStor GS / GS 4000 G3 / GS 4060 G3
