Set JBOD Expansion IDs
- Locate the rotary switch on the JBOD’s front panel.
- Use a small flat blade screw driver to set a unique ID on the JBOD expansion system.
Important!
- The storage system is assigned with ID 0 by default.
- When setting an ID on the JBOD system, you must start from 1.
Connect to JBOD Expansions
The examples below illustrate IN to OUT connections between the storage system and the JBOD expansions, using the onboard SAS expansion ports.
Important!
The examples below are for reference only. For more information, refer to the Expansion Guide at Downloads.

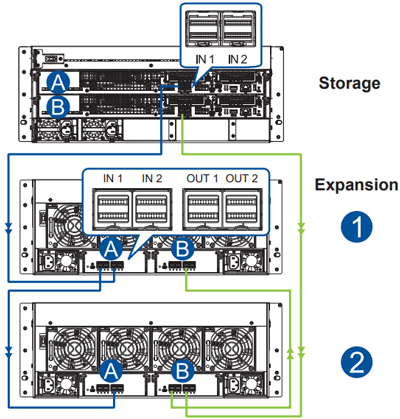

Dual-controller System

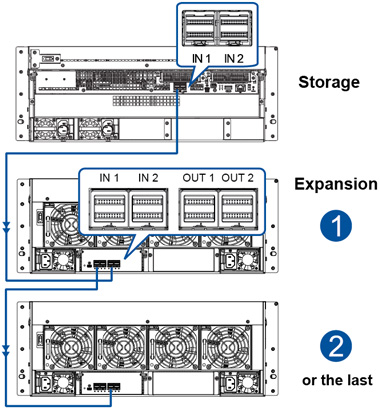

Single-controller System
