Important!
- U.2 NVMe SSDs must be purchased from Infortrend.
- Ensure to install the enclosure to the rack first before installing drives to the enclosure’s drive bays.
- Ensure that your system has all the drive bays occupied with drive trays even if there are no drives installed. Without the drive trays, the ventilation is compromised and may cause overheating.

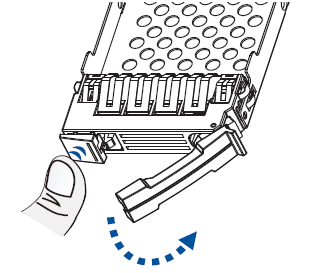

- Press the release button to open the spring handle.

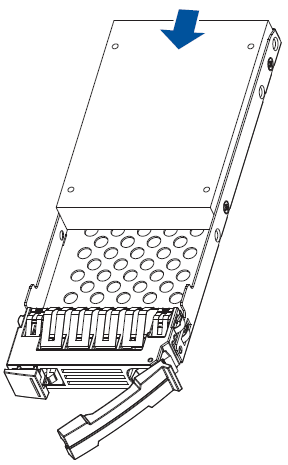

- Place an SSD into the drive tray, with the interface connectors facing the open side of the tray and the drive label facing up.

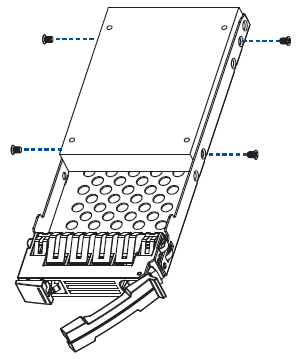

- Secure the drive to the correct holes of the tray using four of the bundled screws.

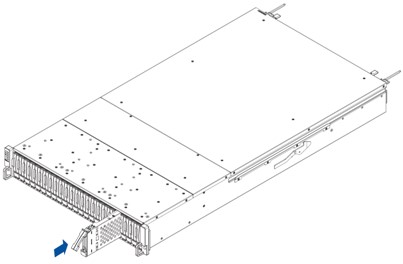

- With the spring handle open, insert the assembled drive and drive tray into the enclosure.
- When the tray is fully inserted into the bay, close the spring handle.
