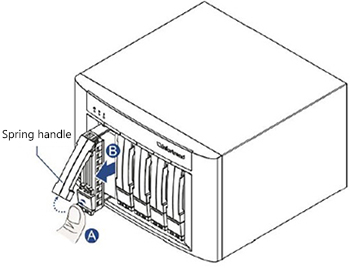

1. Press the release button to open the spring handle (A), and then gently pull out the tray (B).



2. Orient and place the drive to the tray, with the interface connectors facing the open side of the tray and the drive label facing up (A). Then secure the drive with four of the bundled screws (B).

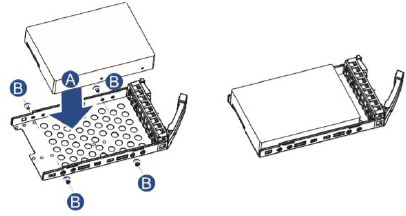

   • 3.5-inch drive

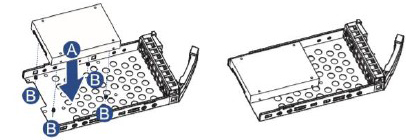

   • 2.5-inch drive



3. Insert the assembled drive and tray into the enclosure with the spring handle open.



4. When the tray is fully inserted into the bay, close the spring handle.



5. Once all drives are installed, the system recognizes the drives and scans them automatically when powered on.

Note:

The images are for illustration purposes only. System design varies by model.
