Set JBOD Expansion IDs
- Locate the rotary switch on the JBOD’s rear panel.
- Use a small flat blade screw driver to set a unique ID on the JBOD expansion system.
Important!
The storage system is assigned with ID 0 by default. When setting an ID on the JBOD system, you must start from 1.
Connect to JBOD Expansions

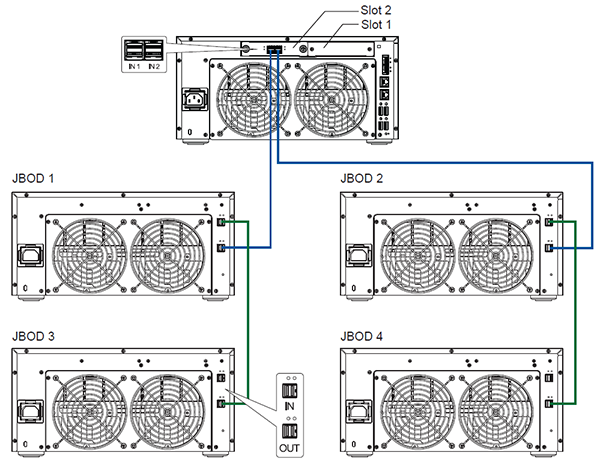

The example below illustrates IN to OUT connections between the storage system and JBOD expansions, using the SAS expansion board.
Important!
The example below is for reference only. For more information, refer to the Expansion Enclosure Guide.
