Check the Slide Rail Kit Contents
Check your slide rail kit for the following contents.
1 x Mounting bracket assembly, left side
1 x Mounting bracket assembly, right side
2 x Inner glides
6 x No.6-32 L4 flathead screws
8 x M5 9.0mm truss head screws
4 x M5 cage nuts
4 x M5 25mm screws
4 x M6 25mm screws
4 x No. 10-32 25.4mm screwsAssemble the Slide Rail Kit

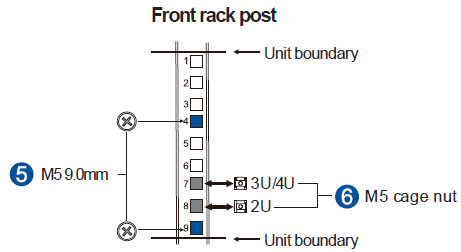

- Determine the position where to install the enclosure to the front and rear rack posts, and then insert the cage nuts into the designated holes of the front rack posts.
Note:
If the rack does not require M5 cage nuts and has its own screw threads, use the M6 or no. 10-32 screws on the front posts.

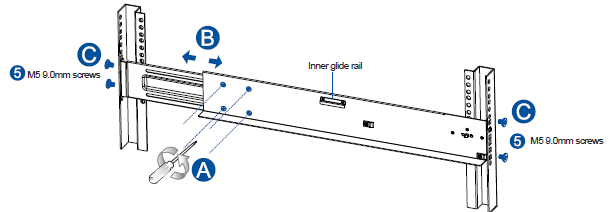

- Loosen the four screws on the slide rail (A), adjust its length (B), and then secure the slide rail to the front and rear rack posts using the M5 9.0mm screws (C). Tighten the four screws on the slide rail to fix the length.
- Attach the inner glides to both sides of the enclosure using the no. 6-32 flathead screws.

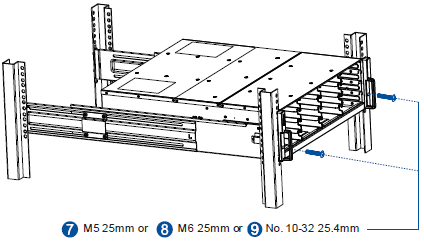

- With the assistance of another person, lift and insert the enclosure onto the slide rails. Ensure that the inner glides on both sides of the enclosure meet the inner glide rails. Secure the enclosure using the M5, M6, or no. 10-32 screws on the front.
Note:
The images are for illustration purposes only. System design varies by model.
