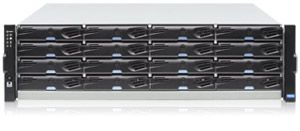

EonNAS 1016

EonNAS 1016 (Legacy product)

EonNAS

Unified storage with host board support that delivers incredible value to SMBs keen on flexible IT. A compact 3U 16-bay chassis with 500mm depth means easy placement in virtually any location, while redundant 80 PLUS power supplies reduce energy consumption to lower operating costs.

Performance gains a boost with 10Gb/s iSCSI and 16Gb/s Fibre Channel host interface options, unlocking new speed in services such as unlimited snapshot and secure remote replication – driven by Solaris ZFS. Systems also support SSD caching and expand to 128 drives via compatible JBOD enclosures, giving you access to ample capacity in future.

*We have multiple model variants available to suit your specific needs. For details, please refer to the datasheet.

Features Benefits

Hybrid host interface with optional onboard iSCSI

Combine diverse connectivity environments on one system for greater utility

Multiple host interface options

Choose 16Gb/s Fibre Channel, 1Gb/s iSCSI or 10Gb/s iSCSI based on your needs and budget

Advanced ZFS support

Protection from silent data corruption and provide end-to-end data integrity

Secure remote replication

The backup to offsite locations provides very reliable and safe disaster recovery

Thin provisioning

Improve storage utilization up to 80% - get more for your investment

Unlimited snapshot

Powered by the revolutionary ZFS, EonNAS supports an unlimited number of snapshots that enable users to quickly restore data only in seconds

Build in pool mirror

Perform real-time data replication between two different EonNAS, seamlessly take over services at minimized downtime.

Unified storage with comprehensive network protocol support

Files can be easily shared among local and remote workstations featuring Windows, Mac or Linux platforms. Make storage consolidation and cross-platform file sharing easily.

Data compression technology

Supported on both shared folders and iSCSI volumes, data compression on EonNAS is achieved with the LZJB algorithm, offering lossless and low-overhead compression.

RAID Protection & Disk Roaming

The RAID protection ensures data stays intact during simultaneous failures of up to two disk drives. While Disk-Roaming enables disk drives be moved within an array,  the drives could be intact transferred to another EonNAS system and be automatically recognized with no drives re-building after the replacement of systems.

Optimal iSCSI and Virtualization Ready

The built-in iSCSI support on EonNAS enables you to deploy IP SAN and to serve applications, such as mail servers, databases and virtualization. EonNAS provides a seamless storage solution for virtualization servers such as VMware, Citrix and Hyper-V.

Host Ports

  • Onboard Gb/s ports
    • Three 1Gb/s iSCSI ports
  • More host options:
    • Two 16Gb/s Fibre Channel ports
    • Two 10Gb/s iSCSI ports/ SFP+ or RJ-45
    • Four 1Gb/s iSCSI ports

Controller

Single controller

Cache Memory

Default DDR3 8GB, up to 16GB or 32GB

Drive Connectivity

  • 6Gb/s SAS connectivity
  • S.M.A.R.T. support
  • Automatic bad-sector reassignment
  • Dedicated bandwidth to each connected drive

Supported Drives

  • 3.5” SATAII/SATAIII hard disk drives
  • 2.5" SATA SSD

** For the latest compatibility details, please refer to the Compatibility Matrix.

Maximum Number of Drives

  • Per system: 16
  • Via expansion enclosure: 128

USB Ports


Four USB ports (rear)

Rack Support

3U, 19-inch rackmount

RAID Functionality

  • Global, dedicated or enclosure hot-spare
  • RAID levels supported : RAID 0, 1, (1+0), 3, 5, 6, 10, 30, 50, 60
  • Online expansion by:
    • Adding new drives
    • Copying and replacing drives with drives of larger capacity
  • Configurable stripe size and write policy per system
  • Intelligent drive handling
    •  In degraded mode: skips irreparable blocks to continue rebuild
    •  In normal operation: data-block verification and repair

Data Protection and Data Service

  • OpenSolaris ZFS end-to-end data integrity
  • Local Replication
    - Unlimited Snapshot
    - Pool mirror
  • Remote Replication
    - Synchronous or asynchronous
  • ICAP-based anti-virus support
  • WORM(Write Once, Read Many)
  • Data compression

Availability and Reliability

Redundant, hot-swappable hardware modules

Notification

Various event notification methods including email and SNMP trap.

System Management

  • Start-up wizard
  • Web-based GUI
  • Real-time system monitoring
  • Dashboard monitoring
  • Configurable alerts
  • Network time protocol
  • SNMP
  • UPS management
  • Disk Roaming
  • HDD S.M.A.R.T.

OS Support

  • Windows XP
  • Vista (32/64-bit)
  • Windows 7 (32/64-bit)
  • Windows server 2003
  • Windows Server 2008, 2008 R2 (including Hyper-V)
  • Windows Server 2012
  • Apple Mac OS X
  • Citrix XenServer
  • VMware vSphere

** For the latest OS support details, please contact our sales representatives.

Service and Support

Standard service

  • 3-year limited hardware/software warranty and 8x5 phone, web, and email support

​Upgrade/Extension service (optional and service may vary by region)

  • replacement part dispatch on the next business day (up to 5 years)

Power

  • Power supplies: Redundant/hot-swappable 530W x 2
  • AC voltage: 100VAC @ 10A to 240VAC @ 5A with PFC (auto-switching)
  • Frequency: 50-60 Hz

Environmental

  • Temperature: 0 to 35°C operating/ -40 to 60°C non-operating
  • Altitude: Sea level to 3660m (12,000ft) operating / sea level to 12,192m (40,000ft) non-operating
  • Relative humidity: 5 to 95% non-condensing, operating and non-operating

Dimensions

443mm (W) x 130mm (H) x 500mm (D)
**Without chassis ears / protrusions

Weight

22kg/ 48.50lbs (without HDDs)

Package Dimensions

776mm (W) x 533mm (H) x 573mm (D)

Protocol Support

  • File Level Protocol
  • CIFS/ SMB
  • AFP
  • NFS
  • FTP
  • FXP
  • WebDAV
  • Block Level Protocol
  • FC
  • FCoE
  • iSCSI
  • InfiniBand
  • SAS
  • Object Protocol
  • RESTful API

Backup Server

  • Apple Time Machine support
  • Windows Backup and Recovery support
  • Bundled free licenses for FarStone TotalRecovery Pro 7/9
    - 8 license per system
  • Backup to external storage devices via USB or eSATA connection
  • USB one-touch-copy (Import/ Export)
  • Remote replication
    - Rsync with 128-bit SSH encryption
  • 3rd party backup software support
    - Acronis Backup & Recovery™/ True Image Home
    - Symantec Backup Exec 2012
    - EMC Retrospect Backup & Recovery
    - CA ARCserve® Backup

** Note: for feature support details, please also check the relevant vendor compatibility list

Network Configuration

  • IPv6 support
  • Fixed or dynamic IP address
  • Dual Gigabit Ethernet with Jumbo Frame
  • Port trunking/ NIC teaming/ Link aggregation (IEEE 802.3ad)
  • DHCP client
  • MPIO, MC/S support

Power Management

  • Wake on LAN
  • Network UPS with SNMP management
  • Schedule Power on/off
  • HDD sleep-mode

Access Right Management

  • User account management
  • Group management
  • Folder management
    - Folder and subfolder access control
  • Folder quota
  • Comprehensive access control action items
    - All Controls, Read, Read and Run, Write, Modify, List
  • Support Windows Active Directory Authentication
    - Domain Users Login via CIFS/ SMB, AFP, FTP, and file explorer
  • LDAP on Linux

The “Purchase Reference” feature enables customers to request a quote from Infortrend sales representatives. Please note that actual product orders and purchases are not processed via Infortrend's website. If you wish to order and purchase Infortrend products, please contact our sales representatives directly.

Please note the following:

  1. The list below is based on standard worldwide shipment, models may vary by region. Infortrend sales representatives can provide more information about shipment variations in your region.
  2. “Default Included” means that a component is standard included in system orders. Customers may order additional units to serve as spare components.

Filter by ticking your preference

System
NS1016T10000D-0032EonNAS 1016T-13U/16Bay NAS Storage, 3 x GbE, Intel Xeon ?E3 quad-core, 8GB Memory, PSUx2 , and rail kit
NS1016T10000F-0032EonNAS 1016T-13U/16Bay NAS Storage, 3 x GbE, Intel Xeon ?E3 quad-core, 16GB Memory, PSUx2 , and rail kit
NS1016T10000H-0032EonNAS 1016T-13U/16Bay NAS Storage, 3 x GbE, Intel Xeon ?E3 quad-core, 32GB Memory, PSUx2 , and rail kit
Host Board
RER01G0HIO4-0010EonNAS 1016T-1EonNAS Gen2 host board with 4 x 1GbE ports
RER10G0HIO2-0010EonNAS 1016T-1EonNAS Gen2 host board with 2 x 10GbE (RJ-45) ports
RES10G0HIO2-0010EonNAS 1016T-1EonNAS Gen2 host board with 2 x 10GbE (SFP+) ports
RFC16G0HIO2-0010EonNAS 1016T-1EonNAS Gen2 host board with 2 x 16G FC ports
HDD/SSD/MUX Board
H72A1XA3XX1-0030EonNAS 1016T-1SATA 6Gb/s HDD, 2TB, 7200RPM, 1 in 1 Packing
H72A2XA2XX1-0030EonNAS 1016T-1SATA 6Gb/s HDD, 3TB, 7200RPM, 1 in 1 Packing
HELS72A3200-00301EonNAS 1016T-1Seagate 3.5" SATA 6Gb/s HDD 2TB, 7200RPM, 1 in 1 Packing
HELS72A3300-00301EonNAS 1016T-1Seagate 3.5" SATA 6Gb/s HDD 3TB, 7200RPM, 1 in 1 Packing
HELS72A3400-00301EonNAS 1016T-1Seagate 3.5" SATA 6Gb/s HDD 4TB, 7200RPM, 1 in 1 Packing
HELS72A3500-00301EonNAS 1016T-1Seagate SATA 6Gb/s HDD, 5TB, 7200RPM, 1 in 1 Packing
HELW72A3600EonNAS 1016T-1Western Digital, 3.5" SATA 6Gb/s,6TB,7200rpm,buffer 256MB,HUS726T6TALE6L4 (0B36039)
Expansion Enclosure
JB2016G01EonNAS 1016T-13U/16bay Single controller JBOD including 1x 6Gb SAS port, 2x(PSU+FAN module), 16xHDD trays and 1xRackmount kit
Cable/SFP Module
9270CmSASCab7-0030EonNAS 1016T-1SAS external cable, Pull type, SFF-8088 to SFF-8088, 50 Centimeters
9270CmSASCab8-0030EonNAS 1016T-1SAS external cable, Pull type, SFF-8088 to SFF-8088, 120 Centimeters
9270CmSASCab9-0030EonNAS 1016T-1SAS external cable, Pull type, SFF-8088 to SFF-8088, 260 Centimeters
Controller Module
8N1016T1MD-0010EonNAS 1016T-1NAS controller module w/8GB, for EonNAS1016T-1 system
8N1016T1MF-0010EonNAS 1016T-1NAS controller module w/16GB, for EonNAS1016T-1 system
8N1016T1MH-0010EonNAS 1016T-1NAS controller module w/32GB, for EonNAS1016T-1 system
Other Accessories
9571CDTRAY-0030Default Included for EonNAS 1016T-1Hybrid tray to accommodating 2.5" or 3.5" hard disk drives
9571CEAR-0010Default Included for EonNAS 1016T-1(China only)Rack ear assembly, for EonNAS 1000 Gen2 subsystems, 19" rack depth
9571CSLIDER-0010Default Included for EonNAS 1016T-1(China excluded)Slide rail assembly, for EonNAS 1000 Gen2 subsystems, 23"~37" rack depth
DDR3NNCMD-0010Default Included for EonNAS 1016T-18GB DDR-III DIMM module for EonNAS series
N3012PSU-0010Default Included for EonNAS 1016T-1Power supply module, for EonNAS system, 530W capacity
RSS06G0HIO2-0010EonNAS 1016T-1EonNAS expansion board with 2 x 6Gb/s SAS ports
