| Form factor |
2U 12-bay |
| Controller architecture |
Single controller |
| Guest OS disk |
2.5" SATA HDDs x 1 (rear side only; optional for OS disks) |
| CPU |
Default Intel C i3-4330, dual-core 3.5G
Upgradables • Intel Xeon E3-1225, quad-core 3.2G
Upgradables • Intel Xeon E3-1275, quad-core 3.5G |
| DIMM slot |
DDR3 slot x 4 |
| Memory capacity |
Default: 8GB(2 x 4GB) with non-ECC
Upgradable to 8GB(2 x 4GB) with ECC
16GB(2 x 8GB) with ECC or non ECC
32GB(4 x 8GB) with ECC or non ECC |
| Rear I/O ports |
• RJ-45 Gigabit Ethernet x 2 (default)
• Up to 4 x GbE ports (optional)
• USB 2.0 x 2 (rear)
• USB 3.0 x 2 (rear)
• VGA x 1
• HDMI x 2 (video only)
• Mic. in port x 1
• Speaker out port x 1 |
| Service port |
Service port x 1
(mini USB connector - RS 232 interface) |
| PCI-E Gen3 slot |
PCI-E 3.0 x 8 slot x 1 |
| Drive interface |
6Gb/s SAS |
| JBOD expansion |
6Gb/s SAS wide port x 1 |
| Disk support |
• 3.5" 7,200 RPM NL-SAS HDD
• 3.5" 7,200 RPM SATA and HDD |
| Max. disk support number |

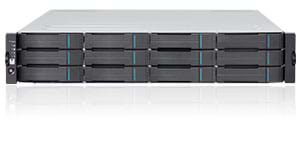

EonServ 5012
312 disks (1 x EonServ 5012 + 5 x 4U 60-bay JBOD)
180 disks (1 x EonServ 5012 + 14 x 2U 12-bay JBOD) |
| Compatible Operating System |
• Windows Server 2012, 64-bit
• Windows 7 Professional SP1, 64-bit
• Windows 7 Embedded Standard SP1, 64-bit
• Linux Ubuntu 13.04
|
| Installation |
OS can be installed in backend 2.5" SATA HDDs x 1 |
| RAID Functionality |
RAID 0, 1, 5, 6, 10, 50, 60 |
| PSU |
Dual Redundant PSU (460 Watts) |
| Enclosure Dimension |
2U 19-inch rackmount
(H)88.00mm x (W)447.40mm x (L)524.41mm
|
