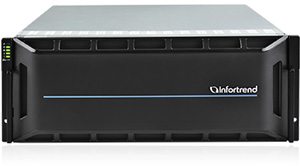

High Performance Enterprise NAS/SAN/Cloud Gateway Storage
EonStor GS 4000 Gen2 delivers high performance of 10 GB/s read and 5.5 GB/s write to support extremely high I/O workloads of HPC and cloud computing; in addition, the performance can be linearly increased via scale-out. The series also supports HA service to ensure non-stop operations for critical workloads.
EonStor GS 4060 Gen2 was discontinued (EOL), effective from October 31, 2022.
Form Factor
4U 60-bay
Controller
Single or dual redundant
Cache Backup Technology
Super capacitor + flash module (option for single controller model)
Cache Memory
Single controller: Default DDR4 8GB, up to 256GB
Dual redundant controllers: Default DDR4 16GB, up to 512GB
Host Ports
Onboard host ports:
10GbE (SFP+) x 8
Host board options:
16Gb/s FC x 4
32Gb/s FC x 2
32Gb/s FC x 4
10GbE (SFP+) x 2
25GbE (SFP28) x 2
12Gb/s SAS x 2
It is strongly recommended that you refer to Related Information > Host Board and Memory Guide above for complete information, including supported combinations and important notes, before purchasing any host board for your model.
Drive Interface
12Gb/s SAS
Supported Drives
2.5" SAS SSD
2.5" 10,000 RPM SAS HDD
3.5" 7,200 RPM NL-SAS HDD
2.5" SATA SSD, 3.5" 6Gb/s SATA 7,200 RPM HDD (for single-controller models only)
For the latest compatibility details, please refer to the Compatibility Guide.
Max. Drive Number
Per appliance: 896 (via expansion enclosures)
Per cluster: 3,584 (via scale-out with other series of appliances)
EonCloud Gateway supports integration with the following cloud providers:
Amazon S3
Microsoft Azure
Alibaba Cloud
Google Cloud
Baidu Cloud
Tencent Cloud
OpenStack
Wasabi
Yandex
hiCloud
Management
Web-based EonOne management software
User account management
Group management
Folder management - folder access control
Quota management
Folder encryption with AES
Integration with Microsoft Active Directory (AD) and Linux LDAP
Storage Resource Management to analyze history records of resource usage
Multi-factor authentication login mechanism
Notification
Email, SNMP traps
Expansion Enclosures (JBODs)
JB 3012A, JB 3016A, JB 3025BA, JB 3060L
Availability and Reliability
Immutable object storage
Hot-swappable hardware modules
Device mapper
Antivirus
Trunk group
Cache safe technology
UPS
WORM (file level only)
SMB Multichannel
Safety Standards
Safety: UL, BSMI, CB
Electromagnetic compatibility: CE, BSMI, FCC
Green Design
80 PLUS-certified power supplies delivering more than 80% energy efficiency
Intelligent multi-level drive spin-down
Power Supply Unit
Power supplies: redundant and hot-swappable 1200W x 2 (80 PLUS Platinum)
AC voltage: 200-240VAC @7.08A
Frequency: 50-60 Hz
Environmental
Temperature:
Operating: 0°C to 40°C without CBM, 0°C to 35°C with CBM
Non-operating: -40°C to 60°C
Altitude:
Operating: sea level to 3,048 m (10,000 ft)
Non-operating: sea level to 12,192 m (40,000 ft)
Relative humidity: 5% to 95% non-condensing, operating and non-operating
Service and Support
Standard service: 3-year limited hardware warranty and 8x5 phone, web, and email support (batteries are covered under warranty for 2 years).
Warranty extension: standard service can be extended up to 5 years.
Service upgrade options: the following service can be upgraded to 5 years
Upgrade: replacement part dispatch on the next business day.
Advanced service: phone, web, and email support + onsite diagnostics on the next business day.
Premium service: phone, web, and email support + onsite diagnostics in 4 hours.
Technical support: installation/maintenance guide, software/firmware download, troubleshooting and support tickets.
Product services: product registration, licensing service, product repair, and order status.
Options may vary by region. For more details, please contact our sales representatives.
Dimensions (W x H x D)
447.6 x 176 x 840.9 mm (without chassis ears and protrusions)
Package Dimensions (W x H x D)
620 x 460 x 1,140 mm
Weight (without HDDs)
114.64 lbs (52 kg)
Package Weight (without HDDs)
137.04 lbs (62.16 kg)
The “Purchase Reference” feature enables customers to request a quote from Infortrend sales representatives. Please note that actual product orders and purchases are not processed via Infortrend's website. If you wish to order and purchase Infortrend products, please contact our sales representatives directly.
Please note the following:
The list below is based on standard worldwide shipment, models may vary by region. Infortrend sales representatives can provide more information about shipment variations in your region.
“Default Included” means that a component is standard included in system orders. Customers may order additional units to serve as spare components.
