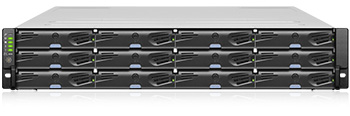

JB 2024B (Legacy product)
Compatible with select EonStor DS 3000 and EonNAS 3000 systems, this 24-bay 2U rackmount enclosure conveniently expands storage with support for SAS, NL-SAS, and SATA drives. Choose from a single controller configuration (JB 2024SB) or a dual controller setup for higher data availability (JB 2024RB), with two enterprise-class 6Gb/s SAS 4x wide ports per controller. JB 2024B expansion enclosures ship with dual redundant 530W hot-swap power supplies to ensure continuous operation, resulting in a highly efficient and space-saving path to capacity growth.
This model is discontinued; the recommended offering is JBOD expansion enclosure.
Host Ports
Two 6Gb/s SAS wide ports (SFF-8088) support:
- Dual host connections
- 1 x IN port for connection to the host and 1 x OUT port for expansion to an additional enclosure
Drive Connectivity
- 6Gb/s SAS connectivity
- S.M.A.R.T. support
- Automatic bad-sector reassignment
- Dedicated bandwidth to each connected drive
Max. Drive Number
- Per system: 24
- Via RAID card to additional JBOD: 216
- Via HBA to additional JBOD: 120
Rack Support
2U, 19-inch rackmount
Green Design
- 80 PLUS-certified power supplies delivering more than 80% energy efficiency
- Intelligent multi-level drive spin-down
Availability and Reliability
Redundant, hot-swappable hardware modules
Service and Support
Standard service
- 3-year limited hardware/software warranty and 8x5 phone, web, and email support
Upgrade/Extension service (optional and service may vary by region)
- replacement part dispatch on the next business day (up to 5 years)
Power Supply Unit
- Power supplies: redundant and hot-swappable 530W x 2 (80 PLUS Bronze)
- AC voltage: 100VAC @10A to 240VAC @5A
- Frequency: 47-63 Hz
Environmental
- Temperature:
- Operating: 5°C to 35°C
- Non-operating: -40°C to 60°C
- Altitude:
- Operating: sea level to 3,048m (10,000ft)
- Non-operating: sea level to 12,192m (40,000ft)
- Relative humidity:
- Operating: 5% to 90%
- Non-operating: uncontrolled to 95%
445 x 88 x 257 mm (without chassis ears and protrusions)
Weight
18.10kg/ 39.90lbs (without HDDs)
Package Dimensions (W x H x D)
779 x 642 x 597 mm
