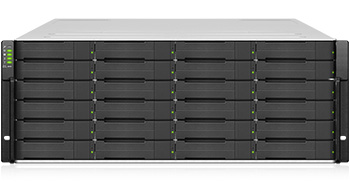

GS 1024 Gen2 (Legacy product)
Entry-Level HDD Unified Storage for SMBs
EonStor GS 1000 integrates NAS and SAN in one HDD appliance for capacity-oriented applications. It offers enterprise-grade data protection features and can be scaled out with up to 4 GS units to linearly increase performance and capacity—all at an SMB-friendly price.
This model is discontinued; the recommended offering is EonStor GS unified storage for enterprises.
| Features | Benefits |
|---|---|
Unified Storage |
Combined block and file storage into a single system for simplicity and efficiency |
Dual host board and hybrid design |
|
Up to 312 HDD support |
|
Dual controllers and SMB 3.0 continuous failover |
Support fast failover and high data availability to minimize the business impact on service availability in case of planned/ unplanned outages |
Cloud Cache |
|
SSD Cache |
Accelerates performance for random read-intensive applications |
Automated storage tiering |
|
Intelligent Drive Recovery (IDR) |
Smarter media scan and effortless drive clone and replace |
Secure Remote Replication |
|
Multi-target snapshot |
With up to 4096 targets, always have backups to recover vital data at different points in time |
EonOne management interface |
|
Super capacitor backup with flash module |
Deliver power and securely save cached data to flash modules during electric grid outages |
SED compatible |
Virtually unbreakable hardware encryption |
Modular cable-less design |
Installation made easy and storage reliability is enhanced. It makes deployment, maintenance, and upgrades as user-friendly as possible too. |
Intelligent drive spin-down and 80 PLUS power supplies |
Lower costs through reduced power draw and longer drive lifespan |
Model
- GS 1012 Gen2
- GS 1016 Gen2
- GS 1024 Gen2
- 2U 12-bay
- 3U 16-bay
- 4U 24-bay
Controller
Dual redundant or single upgradable to dual redundant
Cache Backup Technology
Super capacitor + flash module (option for single controller model)
Cache Memory
- Single controller: Default DDR3 8GB, up to 16GB
- Dual redundant controllers: Default DDR3 16GB, up to 32GB
Host Ports
- Onboard host ports:
- 1GbE (RJ-45) x 8
- Host board options:
- 16Gb/s FC x 4
- 32Gb/s FC x 2
- 1GbE (RJ-45) x 4
- 10GbE (SFP+) x 2
- 12Gb/s SAS x 2
- Per appliance: 448 (via expansion enclosures)
- Per cluster: 3,136 (via scale-out with other series of appliances)
Drive Interface
6Gb/s SAS
Supported Drives
- 2.5" SAS SSD
- 2.5" 12Gb/s SAS 10,000 RPM HDD
- 3.5" 12Gb/s NL-SAS 7,200 RPM HDD
RAID Options
RAID 0, RAID 1, RAID 3, RAID 5/5F, RAID 6/6F, RAID 10, RAID 30, RAID 50, RAID 60
Efficiency
Inline compression, offline deduplication
Data Services
- Default software features include:
- Thin provisioning
- Scale-out (file level): 1 appliance per cluster
- Scale-out (block level): 4 appliances per cluster
- Snapshot (block level): 64 per source volume, 128 per system
- Local replication: 4 per source volume, 16 per system
- Remote replication (file level): support Rsync with 128-bit SSH encryption
- Optional software features require additional license:
- SSD cache
- Automated storage tiering: 4 tiers per pool
- Advanced scale-out (file level): 4 appliances per cluster
- Advanced snapshot (file level): 1,024 per folder
- Advanced snapshot (block level): 256 per source volume, 4,096 per system
- Advanced local replication: 8 per source volume, 256 per system
- Advanced remote replication (block level): 8 per source volume, 64 per system
Supported OS
- Microsoft Windows Server 2019/2016/2012 R2/2012/2008 R2/2008
- Windows 7 SP1
- Windows 8.1
- Windows Hyper-V
- Red Hat Enterprise Linux
- SUSE Linux Enterprise
- Sun Solaris
- macOS X
- VMware
- Citrix XenServer
- OpenStack Cinder
Supported Protocols
- File level: CIFS/SMB (version 2.0/3.0), NFS (version 2/3/4), AFP (version 3.1.12), FTP/FXP (vsftp 2.3.4), WebDAV (httpd package 2.4.6)
- Block level: FC, iSCSI, SAS
- Object level: RESTful API
Cloud Gateway
EonCloud Gateway supports integration with the following cloud providers:
- Amazon S3
- Microsoft Azure
- Alibaba Cloud
- Google Cloud
- Baidu Cloud
- Tencent Cloud
- OpenStack
- Wasabi
- Yandex
- hiCloud
- Backblaze Cloud
Management
- Web-based EonOne management software
- User account management
- Group management
- Folder management - folder access control
- Quota management
- Folder encryption with AES
- Integration with Microsoft Active Directory (AD) and Linux LDAP
- Storage Resource Management to analyze history records of resource usage
- Multi-factor authentication login mechanism
- File-level QoS (network traffic control)
- SMI-S standard interface for hypervisor management applications
- Command-line interface (CLI)
Notification
Email, SNMP traps
Applications
Infortrend offers a wide range of applications for common enterprise needs. For detailed information, please refer to the Applications for GS webpage.
JB 3012A, JB 3016A, JB 3024BA, JB 3025BA, JB 3060L, JB 3090
Availability and Reliability
- Immutable object storage
- Hot-swappable hardware modules
- Device mapper
- Antivirus
- Trunk group
- Cache safe technology
- UPS
- WORM (file level only)
- SMB Multichannel
Safety Standards
- Safety: UL, BSMI, CB
- Electromagnetic compatibility: CE, BSMI, FCC
Green Design
- 80 PLUS-certified power supplies delivering more than 80% energy efficiency
- Intelligent multi-level drive spin-down
Power Supply Unit (Global)
- Power supplies: redundant and hot-swappable 460W x 2 (80 PLUS Bronze)
- AC voltage: 100VAC @10A, 240VAC @5A
- Frequency: 50-60 Hz
Power Supply Unit (EU)
- Power supplies: redundant and hot-swappable 800W x 2 (80 PLUS Titanium)
- AC voltage: 100-127VAC @10A, 200-240VAC @5A
- Frequency: 50-60 Hz
Environmental
- Temperature:
- Operating: 0°C to 40°C without BBU or CBM, 0°C to 35°C with BBU or CBM
- Non-operating: -40°C to 60°C
- Altitude:
- Operating: sea level to 3,048 m (10,000 ft)
- Non-operating: sea level to 12,192 m (40,000 ft)
- Relative humidity: 5% to 95% non-condensing, operating and non-operating
Service and Support
- Standard service: 3-year limited hardware warranty and 8x5 phone, web, and email support (batteries are covered under warranty for 2 years).
- Warranty extension: standard service can be extended up to 5 years.
- Service upgrade options: the following service can be upgraded to 5 years
- Upgrade: replacement part dispatch on the next business day.
- Advanced service: phone, web, and email support + onsite diagnostics on the next business day.
- Premium service: phone, web, and email support + onsite diagnostics in 4 hours.
- Technical support: installation/maintenance guide, software/firmware download, troubleshooting and support tickets.
- Product services: product registration, licensing service, product repair, and order status.
Without chassis ears and protrusions
- 2U 12-bay: 449 x 88 x 500 mm
- 3U 16-bay: 449 x 130 x 500 mm
- 4U 24-bay: 449 x 174.4 x 500 mm
- 2U 12-bay: 780 x 379 x 588 mm
- 3U 16-bay: 780 x 423 x 588 mm
- 4U 24-bay: 780 x 465 x 588 mm
- 2U 12-bay: 31.97 lbs (14.5 kg)
- 3U 16-bay: 38.45 lbs (17.44 kg)
- 4U 24-bay: 42.28 lbs (19.18 kg)
