FAQ

Follow the instruction below:

1. Launch spotlight by pressing CMD + Space
2. Type Terminal
3. Select the Terminal app
4. In the terminal window, enter command:

   e.g. ls /dev/cu.usbserial-*

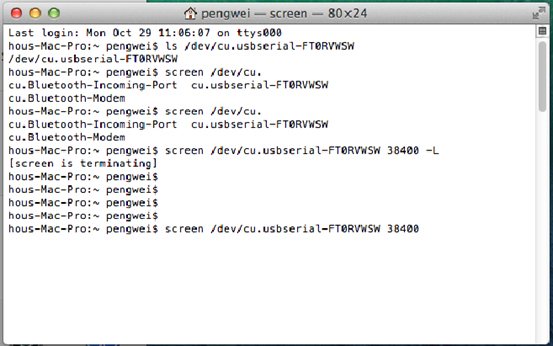

5. In the list of connected devices, look for a device that contains cu.usbserial. In the example below, the device name is /dev/cu.usbserial-FT0RVWSW



6. Connect to the USB serial device using the terminal screen utility by entering the command.

   e.g. screen /dev/xx.usbserial-xxxxxxxx 115200 –L



NOTE:

• The baud rate of GS 3000/4000 Gen2 is 115200.
• The baud rate for the rest of the GS model is 38400.
